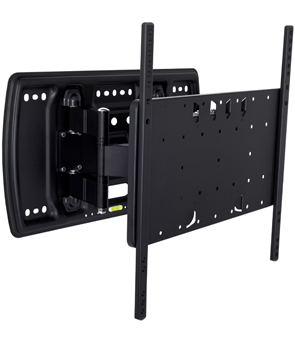

M VESA Super Slim Tilt & Turn ends an era of bulky and heavy arms needed to flex, tilt and turn. If your aim is to find a discreet partner for that new LED, LCD or plasma in a light weight, super strong solution not visible from any side yet giving you a maximum flexibility then the M VESA Super Slim Tilt & Turn is your choice.
The uniquely designed low profile M VESA Super Slim Tilt & Turn mount fits most 26” and up to 55” flat panels up to 40 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Super Slim Tilt & Turn is part of the Super Slim Series of fixed, tilt and cantilever mounts offering a slim design without compromising on functionality.
The specifications this product reveals are simply incredible.

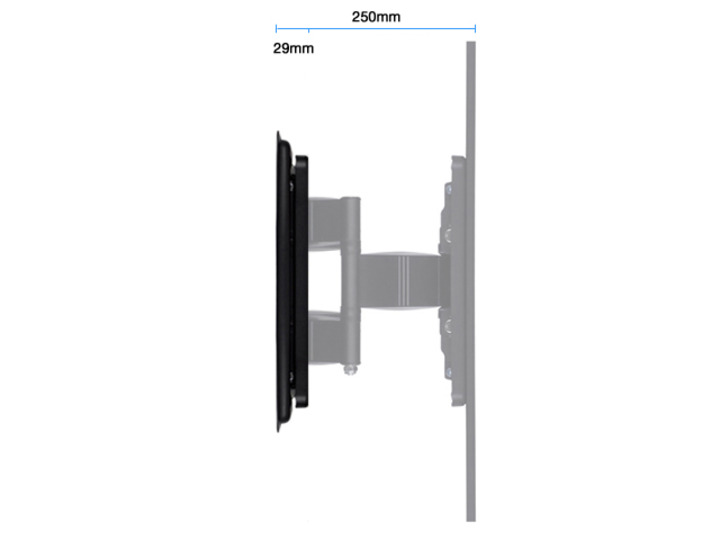

Super Slim defines the minimal 29 mm of the low profile to wall. It extends to a maximum of 250 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 40 kgs.
Being both super slim and super flexible the built in functions of the wall mount allows you to optimize the screen for the perfect viewing angle. Wherever you are.

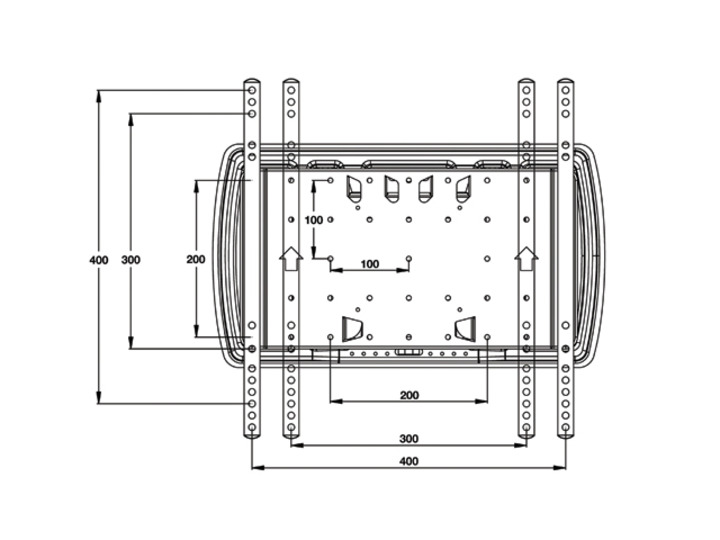

M VESA Super Slim Tilt & Turn is suitable for a wide range of screens sized 26” and up to 55”. The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm. If needed, the wall mount can be combined with an optional VESA extender kit which enables the 600x400 mm VESA standard. This means that M VESA Super Slim Tilt & Turn is suitable for most of the VESA standards including the rare ones.
The flexarms nest for a super slim 30 mm mounting profile
Flex, tilt and turn for an optimal viewing angle at any time
Tilt easily to -2°~+7º to reduce glare
Turn effortlessly to -20°~+20° to view from the right angle
Installation template and tool kit included for simple mounting

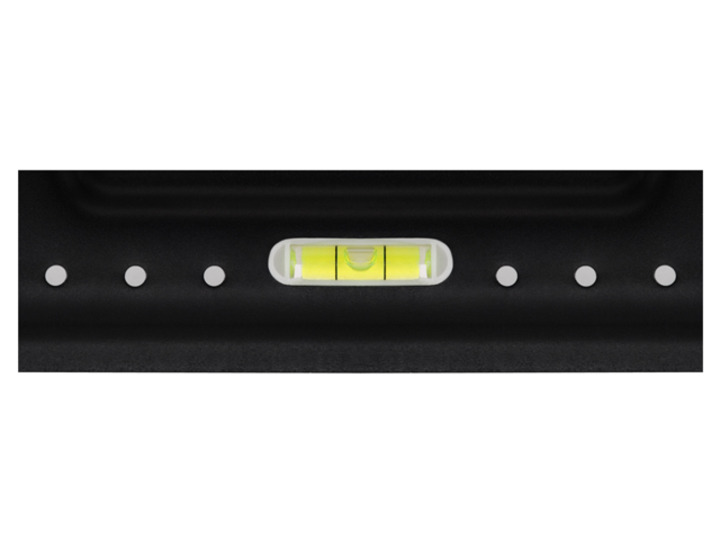

Built in bubble level for accurate mounting
One person tilt adjustment
Horizonal distance in mm
Vertical distance in mm
VESA
50
75
100
200
300
400
600
50
75
100
Yes
Yes
200
Yes
Yes
Yes
Yes
300
Yes
Yes
Yes
400
Yes
Yes
Yes
*
600
*

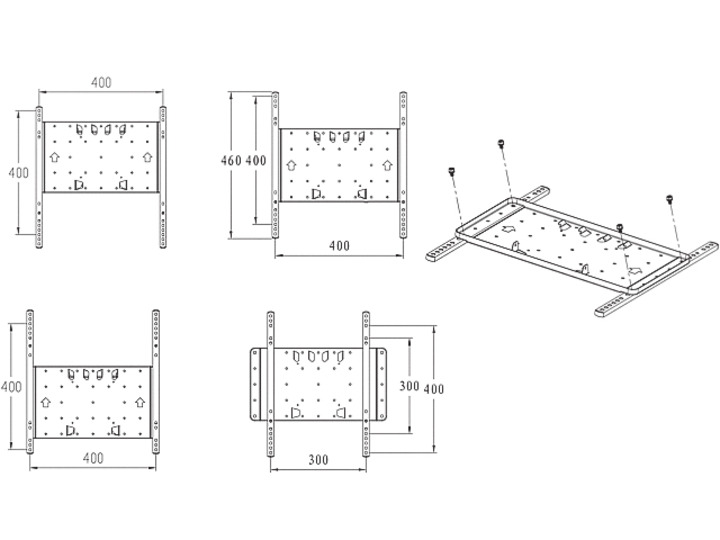

*Optional M Extender Kit Tilt & Turn 600x400
Multibrackets VESA Super Slim Tilt & Turn video
See the Multibrackets Universal Wallmount video in other languages:
|
|
|
|
|
|
|
|
|
Share link to this video: Right click on the flag, choose "Copy shortcut" or "Copy link location" and paste the link where you prefer to share.
Samsung
SAMSUNG PS-51D535 51" PLASMA HD
SAMSUNG PS-51D555 51" PLASMA FULL-HD 3D
SAMSUNG PS-59D555 59" PLASMA FULL-HD 3D
SAMSUNG PS-64D8005 64" PLASMA FULL-HD 3D
SAMSUNG UE-55C9005Z 55" LED FULL-HD 3D
SAMSUNG UE-55D6507 55" LED FULL-HD 3D
SAMSUNG UE-60D6505 60" LED FULL-HD 3D
SAMSUNG UE-55D7005 55" LED FULL-HD 3D
Samsung 59" 3D Plasma-TV PS59D555
Samsung 55" 3D LED-TV UE55D6327
Samsung 55" 3D LED-TV UE55D7005
Samsung 55" 3D LED-TV UE55D6757
Samsung 59" 3D Plasma-TV PS59D6905
Samsung 55" 3D LED-TV UE55D8005
LG
LG 60PZ950 60" PLASMA HD 3D
LG 55LW4500 55" LED HD 3D
LG 55LW5500 55" LED HD 3D
LG 55" 3D LED-TV 55LW650W
Sony
Sony 55" 3D LED-TV KDL-55EX720
Sony 55" 3D LED-TV KDL-55HX820
Sony 55" 3D LED-TV KDL-55EX720
Philips
Philips 55" LED-TV 55PFL6606T
Philips 55" 3D LED-TV 55PFL7606T
Philips 58" 3D LED-TV 58PFL9956T
